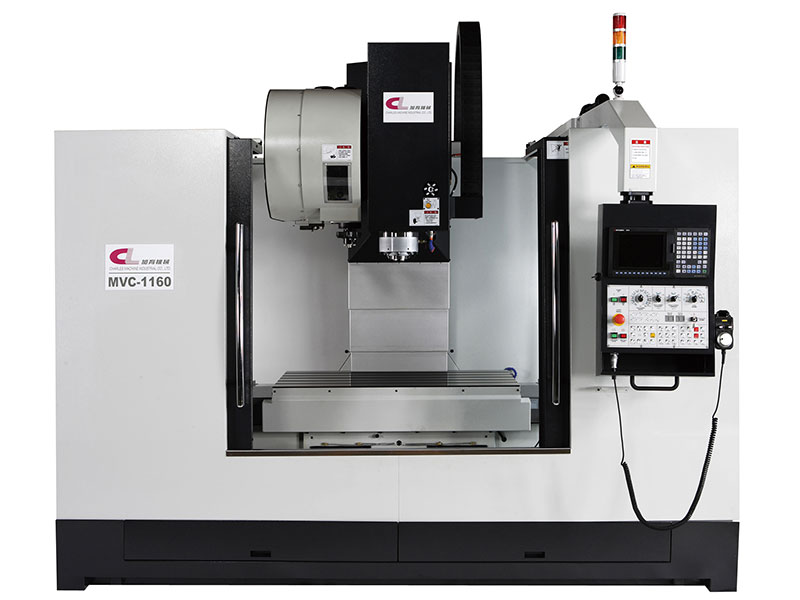

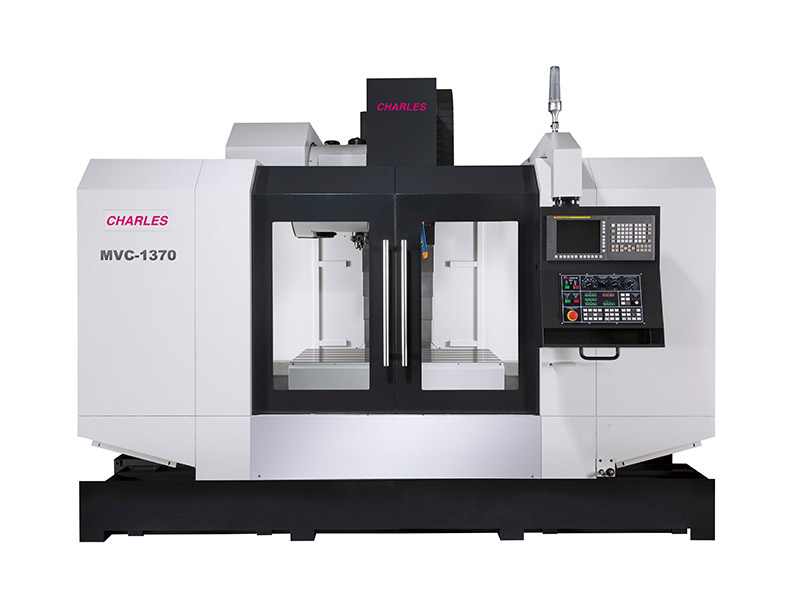

MVC-955/1160/1370/1690

home > products > Box Way > MVC-955/1160/1370/1690

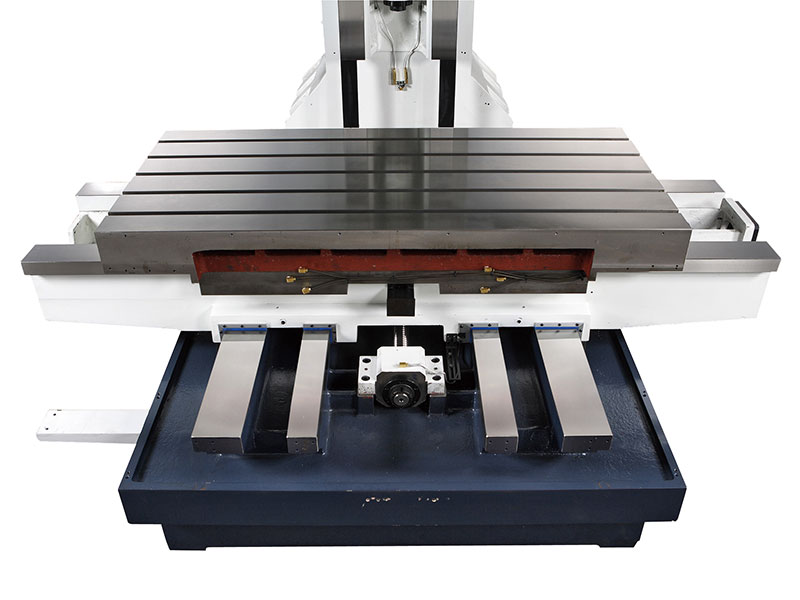

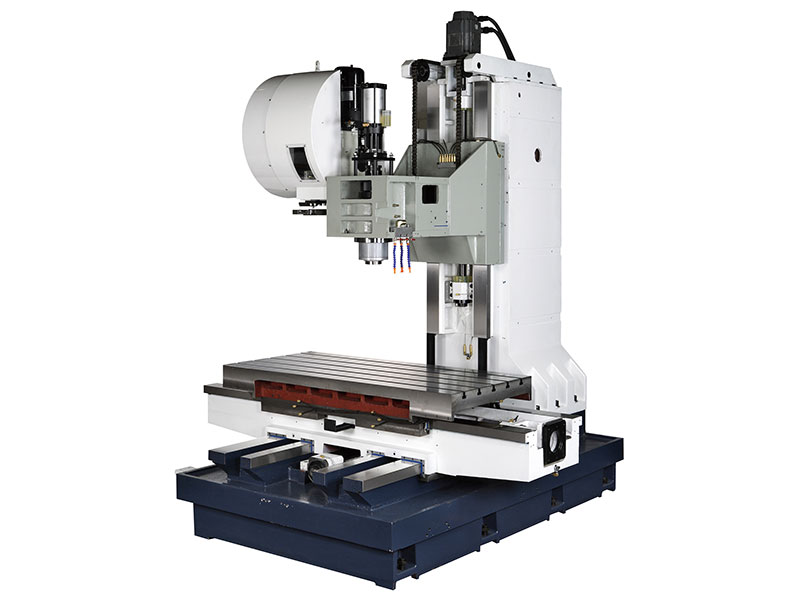

    • Box-type structure, P4-class spindle bearings, spindle sleeve is machined from SCM4, high rigidity, and heavy cutting.
    • Use the world certificated Meehanite Casting, strengthen the internal ribs, and through annealing treatment to get a high stability and no deformed casting. The hardness is up to HRC 52°±3°。
    • Suitable for heavy cutting, and machine huge molds, high hardness workpiece, normal accuracy requirement workpiece.
  • SPECIFICATIONS Unit
    Travel X-Axis travel mm
    Y-Axis travel mm
    Z-Axis travel mm
    Ball screw X-Axis
    Y-Axis
    Z-Axis
    Table Area mm
    Max. Table load kgs
    T-slot dia. mm
    Spindle Spindle taper Standard
    Optional
    Spindle speed and driving method BT40 Standard RPM
    BT40 Optional RPM
    BT50 RPM
    Distance Spindle nose to table surface mm
    Spindle center nose to column mm
    Tool Tool capacity
    Max. Length of tool BT40 mm
    BT50
    Max. Dia of tool BT40 mm
    BT50
    Max. Weight of tool BT40 kgs
    BT50
    Tool change time BT40 sec
    BT50
    Feeding Rapid feed speed m/min
    Controller Mitsubishi controller (10.4")
    Fanuc controller (8.4")
    Motor Spindle motor HP
    Feed motor Mitsubishi controller (10.4") KW
    Fanuc controller (8.4") KW
    Machine size( Length x Width x Height ) cm
    Net weight kgs
    Suitable container
    MVC-955 MVC-1160 MVC-1370 MVC-1690
    900 1,100 1,300 1,600
    550 600 700 900
    530 610 700 800
    R40 x P10 R40 x P12 R50 x P12 R50 x P12
    R40 x P10 R40 x P12 R50 x P12 R50 x P12
    R40 x P10 R40 x P12 R50 x P12 R50 x P12
    1,000 x 510 1,200 x 600 1,400 x 700 1,800 x 900
    600 800 1,200 1,500
    CD 100 x 18 x 5T CD 100 x 18 x 5T CD 125 x 18 x 5T CD 125 x 18 x 7T
    BT40
    BT50
    10,000 Belt type
    10,000 / 12,000 / 15,000 Direct type N/A
    6,000 Belt type
    150-680 150-760 150-850 150-950
    550 600 700 900
    24
    300
    350
    135
    220
    8
    20
    1.31 (60HZ)
    2.5 (60HZ)
    X:20, Y:20, Z:15
    M80
    0i-MF β12 0i-MF α12
    15 20 20
    X:2.0, Y:2.0, Z:3.5 X:3.5, Y:3.5, Z:3.5 X:7.0, Y:7.0, Z:7.0
    X:2.5, Y:2.5, Z:2.5 X:4.0, Y:4.0, Z:4.0 X:7.0, Y:7.0, Z:7.0
    262*212*272 292*212*272 340*270*290 524*333*350
    5,500 7,700 11,000 17,000
    40'HQ Split into 2 pallets for
    a 40'HQ or 20'FR instead    		 20'FR
    ※Specification is subject to change without prior notice.
  • STANDARD ACCESSORIES
    1. Alarm light
    2. Arm type ATC
    3. Remote MPG
    4. Full enclosure
    5. Rigid tapping
    6. Spindle oil cooler
    7. Tool box with tool kits
    8. RS232 Interface
    9. Heat exchanger
    10. Coolant flushing system
    11. A.I.Contour Control
    12. Auto lubricating system
    13. Auto power off system
    14. Metal telescopic cover
    15. Cutting liquid defector
    16. Screw type chip conveyor (with tank)
    17. Level adjusting bolts and pads
    18. Spindle auto flush / air blast device
    19. Handle flush and air blast device
    OPTIONAL ACCESSORIES
    1. Air-conditioner
    2. Coolant ring
    3. C.T.S (coolant thrugh spindle)

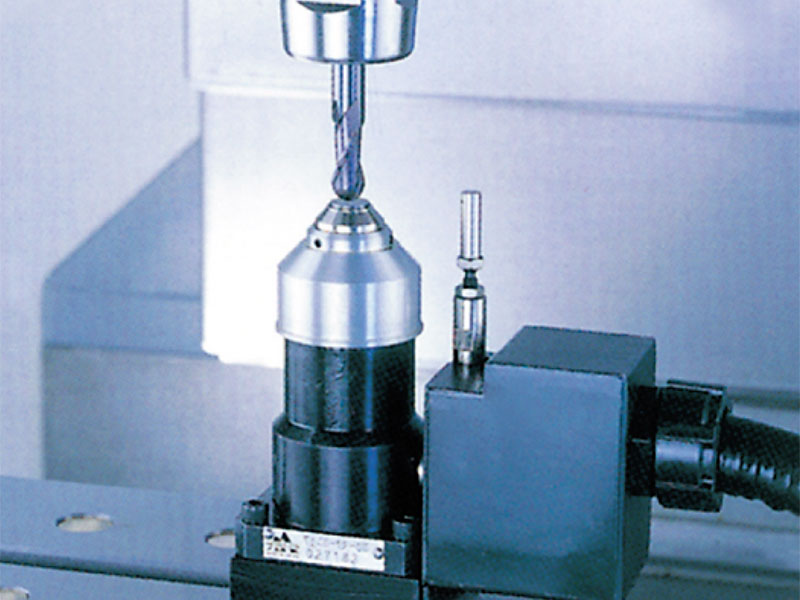

    4. Tool setter
    5. Boat type chip conveyor (with tank)
    6. Rotary table
    7. Oil-water separator
    8. Spin window
