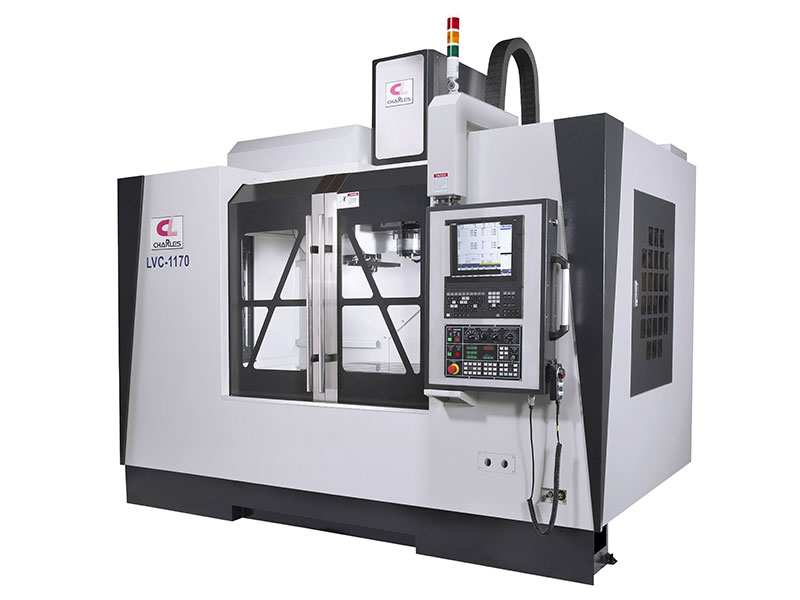

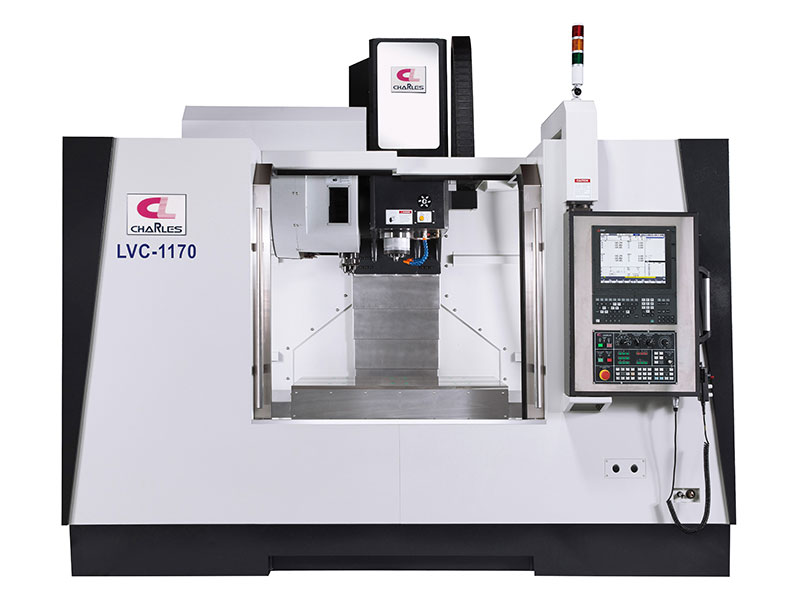

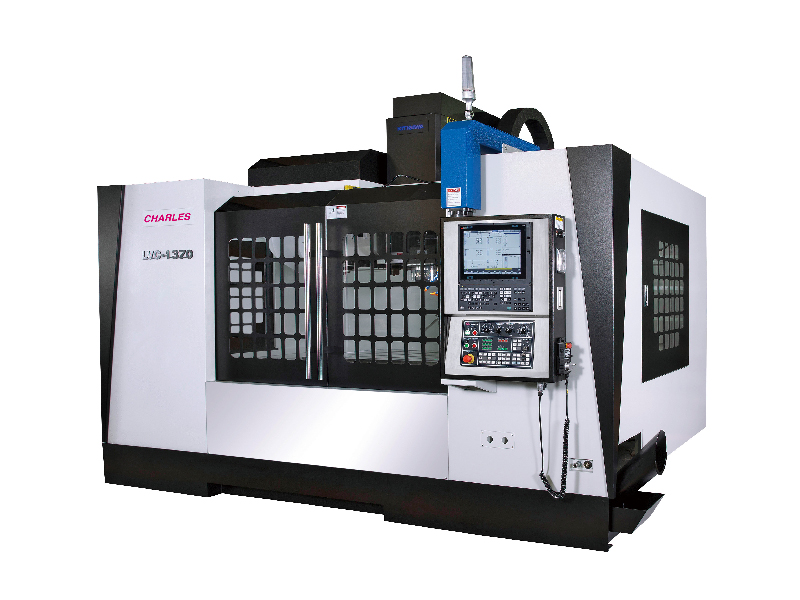

LVCQ-1170/1370/1570

home > products > Linear Way > LVCQ-1170/1370/1570
    • Through pre-tightening treatment, there’s none gap between guideways. And machine operating life is longer than box way machines.

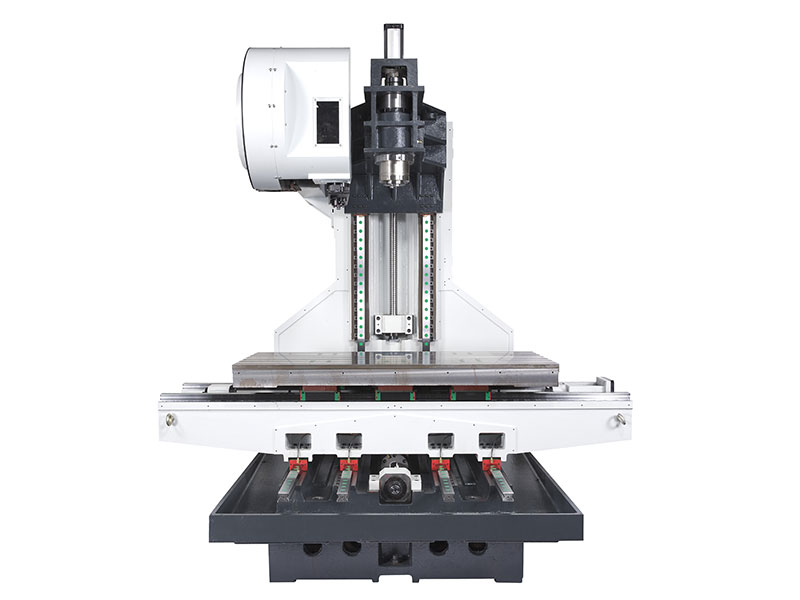

    • With roller type linear guideway to make up the disadvantage of smaller cutting performance. Through the linear contact between rolling elements, guideway and blocks, there’s only slight elastic deformation on the rolling elements when they withstand high loads, so the whole linear guideway could achieve the performance of high rigidity and high load capacity in four directions. Besides, because of feature of high rigidity, machining accuracy could be increased a lot to achieve the requirement of high accuracy. Plus the super high load capacity to extend the life of linear guideway.
    • Suitable for machining various type of precision parts, smaller precision molds and high accuracy requirement workpiece.
  • SPECIFICATIONS Unit
    Travel X-Axis mm
    Y-Axis mm
    Z-Axis mm
    Linear guide way X-Axis
    Y-Axis
    Z-Axis
    Ball screw X-Axis
    Y-Axis
    Z-Axis
    Table Area mm
    Max. Table load kgs
    T-slot dia. mm
    Spindle Spindle taper Standard
    Optional
    Spindle speed and driving method BBT40 Standard RPM
    BBT40 Optional RPM
    BT50 RPM
    Distance Spindle nose to table surface mm
    Spindle center nose to column mm
    Tool Tool capacity
    Max. Length of tool BBT40
    BT50
    Max. Dia of tool BBT40
    BT50
    Max. Weight of tool BBT40 mm
    BT50 mm
    Tool change time BBT40 kgs
    BT50 sec
    Feeding Rapid feed speed m/min
    Controller Mitsubishi controller (10.4")
    Fanuc controller (10.4")
    Motor Spindle motor HP
    Feed motor Mitsubishi controller (10.4") KW
    Fanuc controller (10.4") KW
    Machine size( Length x Width x Height cm
    Net weight kgs
    Suitable container
    LVCQ-1170 LVCQ-1370 LVCQ-1570
    1,100 1,300 1,500
    700
    700
    RGW45
    RGW45 x 4
    RGW45
    R50 x P16
    R50 x P16
    R50 x P16
    1,200 x 700 1,400 x 700 1,600 x 700
    1,500 1,700 1,800
    CD 100 x 18 x 7T
    BBT40
    BT50
    10,000 Belt type
    10,000 / 12,000 / 15,000 Direct type
    6,000 Belt type
    150-850
    700
    24
    300
    350
    135
    220
    8
    20
    1.31 (60HZ)
    2.5 (60HZ)
    X:48, Y:48, Z:36
    M80
    0i-MF plus α12 Series
    20
    X:3.5, Y:3.5, Z:4.5
    X:4.0, Y:4.0, Z:7.0
    353*262*320 373*262*320 430*262*230
    9,550 10,500 11,500
    40'HQ
    ※Specification is subject to change without prior notice.
  • STANDARD ACCESSORIES
    1. Alarm light
    2. Arm type ATC
    3. Remote MPG
    4. Full enclosure
    5. Rigid tapping
    6. Spindle oil cooler
    7. Tool box with tool kits
    8. RS232 Interface
    9. Heat exchanger
    10. Coolant flushing system
    11. A.I.Contour Control
    12. Auto lubricating system
    13. Auto power off system
    14. Metal telescopic cover
    15. Cutting liquid defector
    16. Screw type chip conveyor (with tank)
    17. Level adjusting bolts and pads
    18. Spindle auto flush / air blast device
    19. Handle flush and air blast device
    OPTIONAL ACCESSORIES
    1. Air-conditioner
    2. Coolant ring
    3. C.T.S (coolant thrugh spindle)
    4. Tool setter
    5. Boat type chip conveyor (with tank)
    6. Rotary table
    7. Oil-water separator
    8. Spin window
