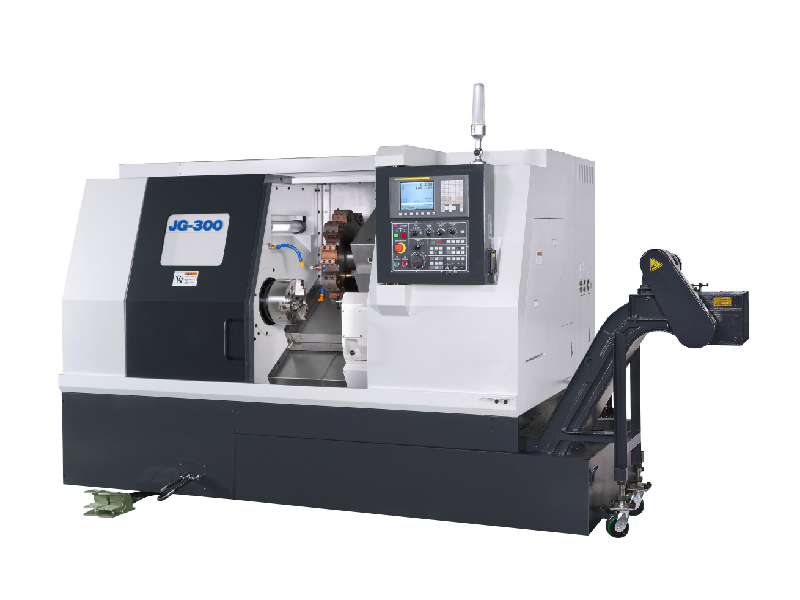

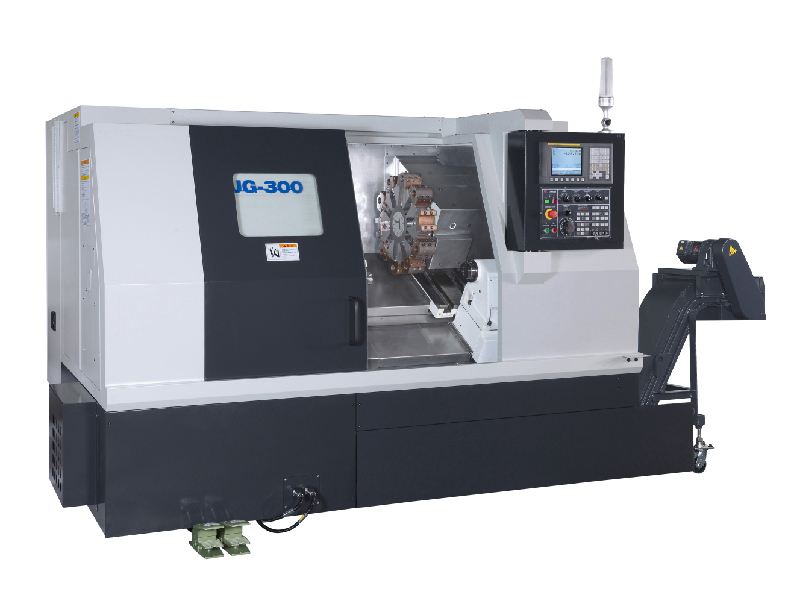

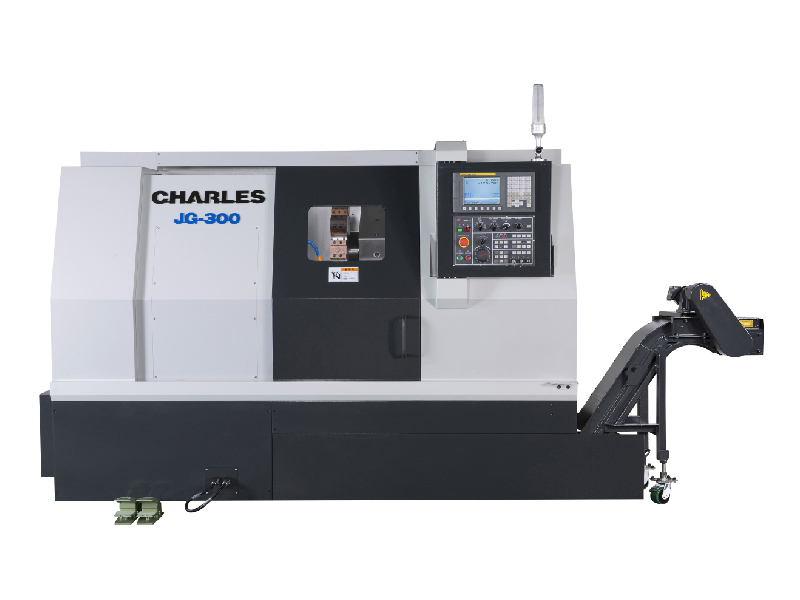

JG-300(L)

home > products > CNC Lathe Machine > JG-300(L)
    • One piece molding designed to make the lathe stronger, more durability, more stable, and less deformed.
    • Ergonomic operation.
  • SPECIFICATIONS Unit
    Lathe Rail type
    Body type
    Fanuc controller (8.4")
    Chuck size inch
    Ball screw
    Hydraulic tank capacity L
    Coolant tank capacity L
    Processing range Swing over bed*1 mm
    Max. Turning diameter*1 mm
    Max. Turning length*1 mm
    Bar diameter mm
    Stroke X-Axis mm
    Z-Axis mm
    Spindle Spindle nose
    Spindle bore mm
    Max. Spindle speed RPM
    Servo turret Turret capacity
    Square tool shank mm
    Round tool shank mm
    Center height mm
    Indexing time (tool-tool) mm
    Indexing time (includes locking) sec
    Total indexing time for 180° sec
    Total indexing time for 180°(includes locking) sec
    Tailstock Tailstock stroke mm
    Tailstock sleeve stroke mm
    Tailstock sleeve taper
    Feeding Rapid feeding speed m/min
    Motor Spindle motor KW
    Feed motor KW
    Servo turret motor KW
    Machine size (Length x Width x Height)*2 cm
    Net weight kgs
    Pallet size (Length x Width) cm
    JG-300 JG-300L
    Box way
    30° Box way
    0i-TF αP30
    10
    R40 x P12
    60
    264 325
    670
    400
    490 950
    75
    470 470
    560 1,000
    A2-8
    91
    2,500
    10
    25
    40
    125
    0.2
    0.3
    0.65
    0.9
    350 680
    120
    MT#5
    X:20, Z:24
    15/18.5
    X:3.0, Z:4.0
    1.2
    378 x 183 x 182 428 x 183 x 182
    5,350 5,900
    420*229 465*229
    <>
    ※Specification is subject to change without prior notice.
    1※Thickness of jaw, tool and retract room have been reserved.
    2※Chip conveyor is included.
  • Standard Accessories
    1. U sleeve ø20,25,32 per size 1 pc
    2. ID sleeve ø8,10,12,20,25,32 per size 1 pc
    3. OD tool holder 2 sets
    4. ID tool holder 3 sets
    5. U-drill tool holder 2 sets
    6. MT#2, 3 sleeve per size 1 pc
    7. Work light
    8. Full enclosure
    9. Heat exchanger
    10. Auto lubricator
    11. Hydraulic chuck (1 set hard jaw, 3 sets soft jaw)
    12. Programmable tailstock
    13. Side type chip conveyor (with tank)
    14. Tool box with tool kits
    Optional Accessories
    1. Auto bar feeder
    2. Air-conditioner
    3. Tool probe
    4. Oil-water separator
    5. Oil skimmer
