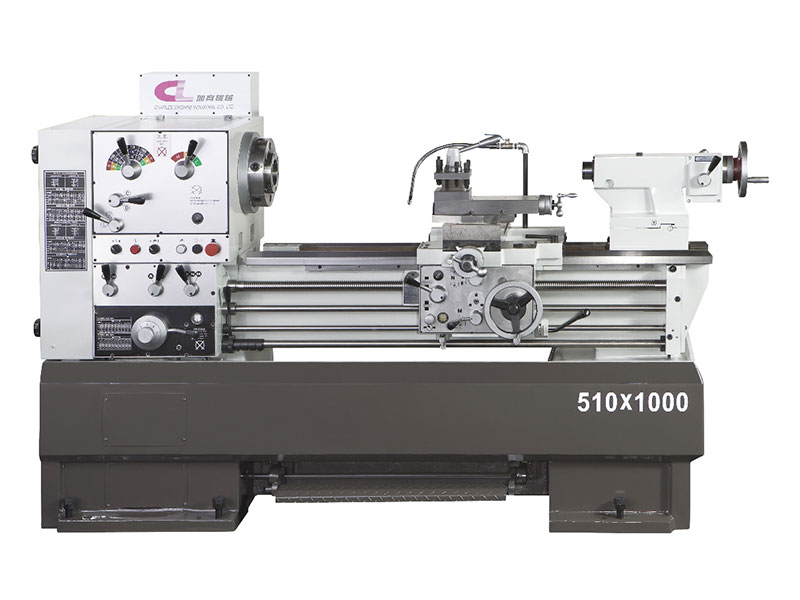

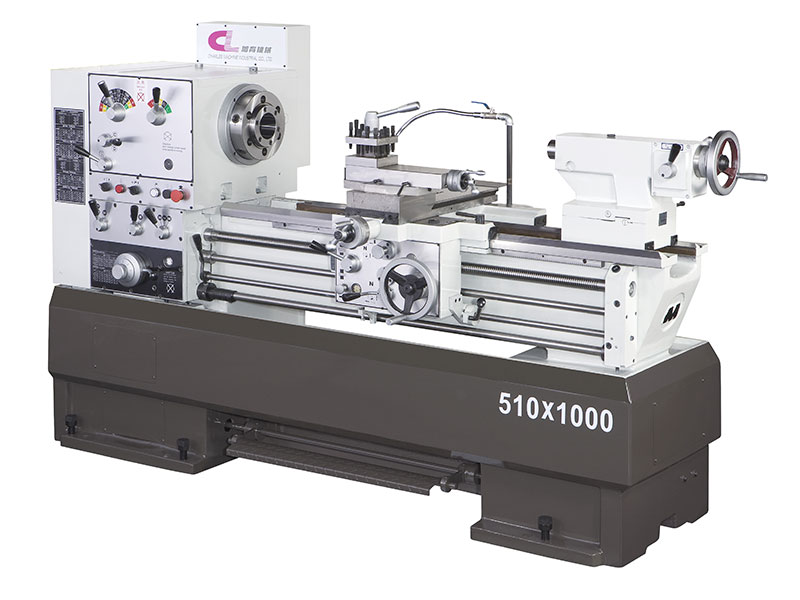

home > products > High Speed Precision Lathe > CH-510
-
- 12 steps spindle speed to shorten the processing time of all size workpieces. (4 steps for variable series)
- 82mm spindle bore with FAG ball bearings which is suitable for light and heavy cutting.
- Stand-alone electrical box with overload protection device is easier to maintain and safety.
- No need to exchange the gear while switching the system by using this common use gearbox which also has advantages like with low noise, safety cutting protection device on gear and using cycling lubrication system.
- All the gears in headstock are carburized by heat treatment and grinded accurately in order to extend life of lathe.
- Tailstock with 2 speed gearbox which is much suitable for drilling work.
- Closed-type oil immersion system which provides better lubricating results in Apron.
- Foundation bed is made by one piece molding and the bed is grinded accurately and by high-frequency heat treatment.
- Foot emergency stop device which could also cut off the main power at the same time to ensure the safety of the operator and lathe.
- Gap could be removed accordingly to machining larger workpieces.
-
SPECIFICATIONS Unit Lathe Center height mm Swing over bed mm Swing over gap mm Swing over cross slide mm Distance between centers mm Bed width mm Bed length mm Spindle Spindle bore diameter mm Spindle nose Spindle taper Spindle speed RPM Spindle speed* Variable series RPM Carriage Cross slide travel mm Tool holder travel mm Cutting tool size mm Tailstock Spindle diameter mm Spindle travel mm Center taper Threading & Feeding System Dia. of leadscrew Ø (Metric) pitch of leadscrew mm / pitch (Inch) pitch of leadscrew TPI Metric pitch threads mm Inch pitch threads TPI Module pitch threads M.P. Pitch thread diameter D.P. Longitudinal feeds mm / rev. Cross feeds mm / rev. Motor Main motor HP Inverter motor* Variable series HP Coolant pump motor HP Floor space ( Length x Width ) cm Net weight kgs Pallet size ( Length x Width x Height ) cm 510 x 1000
( V )510 x 1500
( V )510 x 2000
( V )255 510 735 285 1,000 1,500 2,000 300 1,950 2,440 2,960 82 A 1-8 or D1-8 MT#8 25~1,500 (12 steps) H：(A)480~1,500 (B)180~570、L：(A)80~245 (B)30~95 (4 steps) 250 180 25 x 25 58 150 MT#4 Metric、Inch、Mixed 35 6 4 0.5~7 (22kinds) 4~56 (36kinds) 0.5~3.5 (12kinds) 8~56 (21kinds) 0.05~0.70 0.025~0.35 7.5 10 1/8 210*80 265*80 320*80 2,000 2,100 2,500 227*119*179 272*119*200 330*119*179 ※Specification is subject to change without prior notice. -
STANDARD ACCESSORIES
- Fixed center MT#4
- Coolant system
- Work Light
- 10" 3-jaw chuck with plate
- Steady rest
- 4-way tool post
- Tool box with tool kits
- Pad
OPTIONAL ACCESSORIES- 4-jaw chuck
- Full length splash guard
- Rotation center MT#4
- Face plate
- Drive plate
- Taper attachment
- Follow rest
- CE device
- DRO
- Quick change tool post
- 4-Postion bed stop
