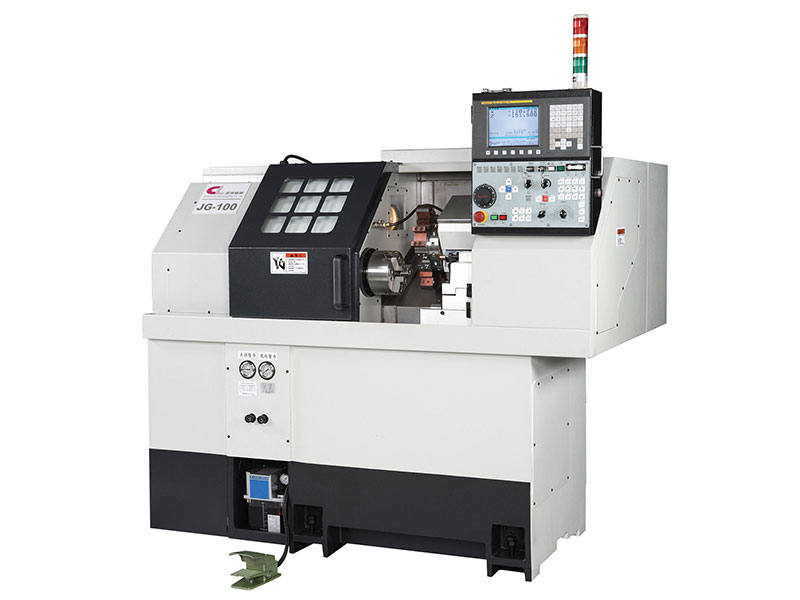

home > products > CNC Lathe Machine > JG-100/150

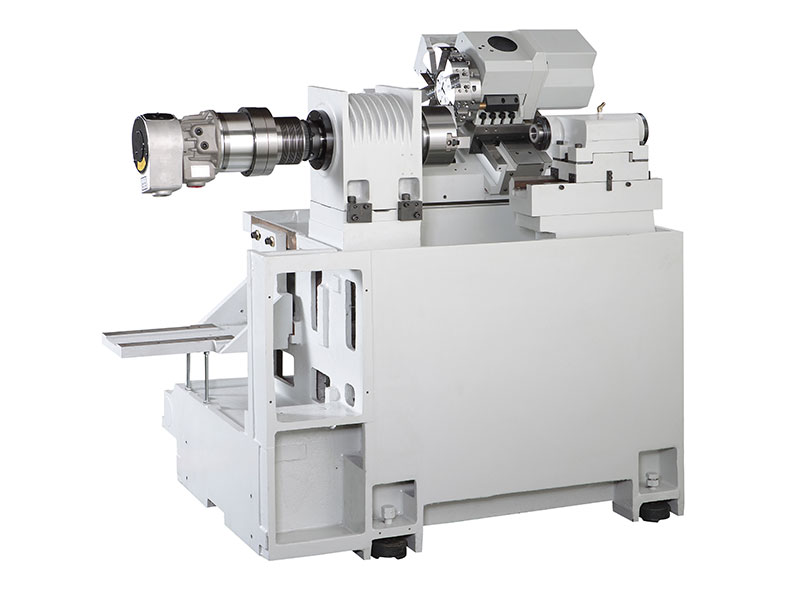

    • One piece molding and 30° slope designed to make the lathe stronger, more durability, more stable, and less deformed.
    • Use Meehanite Casting, be grinded accurately, and be made by high-frequency heat treatment.
  • SPECIFICATIONS Unit
    Lathe Rail type
    Body type
    Fanuc controller (8.4")
    Chuck size inch
    Ball screw
    Hydraulic tank capacity L
    Coolant tank capacity L
    Processing range Swing over bed*1 mm
    Max. Turning diameter*1 mm
    Max. Turning length*1 mm
    Bar diameter mm
    Stroke X-Axis mm
    Z-Axis mm

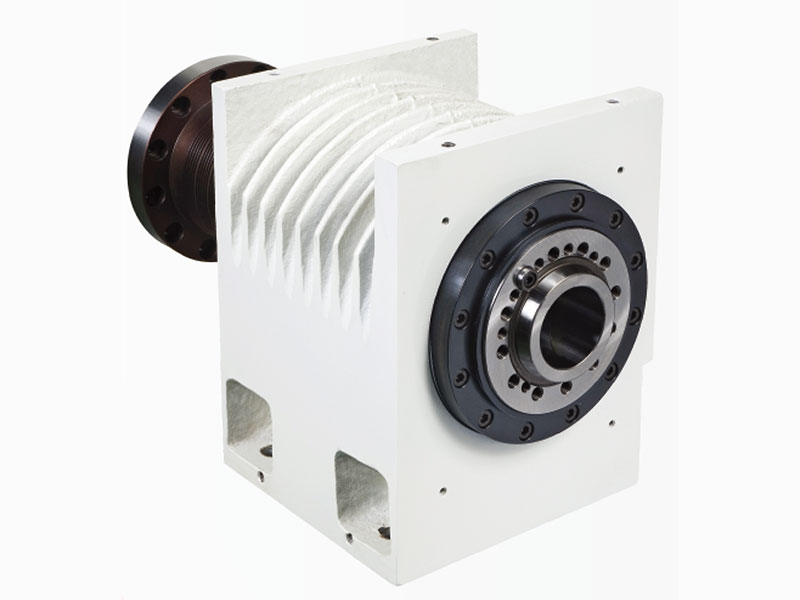

    Spindle Spindle nose
    Spindle bore mm
    Max. Spindle speed RPM

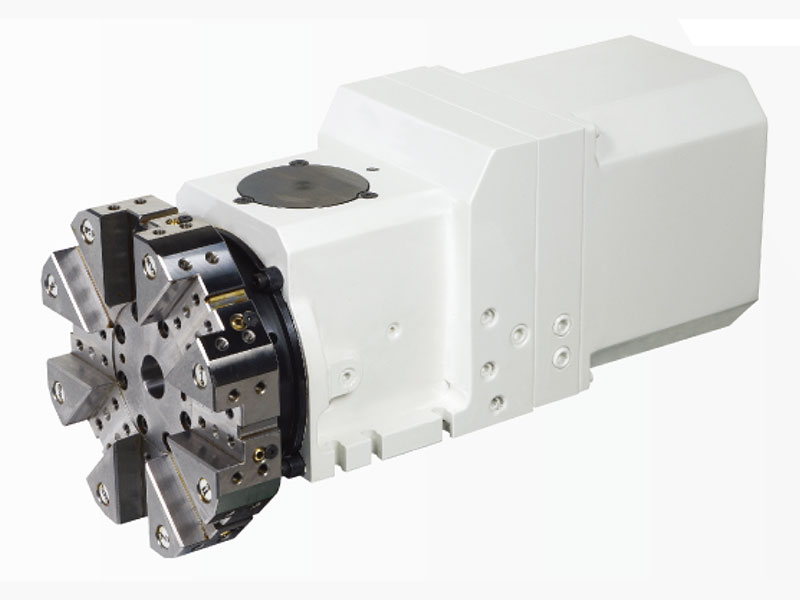

    Servo turret Turret capacity
    Square tool shank mm
    Round tool shank mm
    Center height mm
    Indexing time (tool-tool) mm
    Indexing time (includes locking) sec
    Total indexing time for 180° sec
    Total indexing time for 180°(includes locking) sec

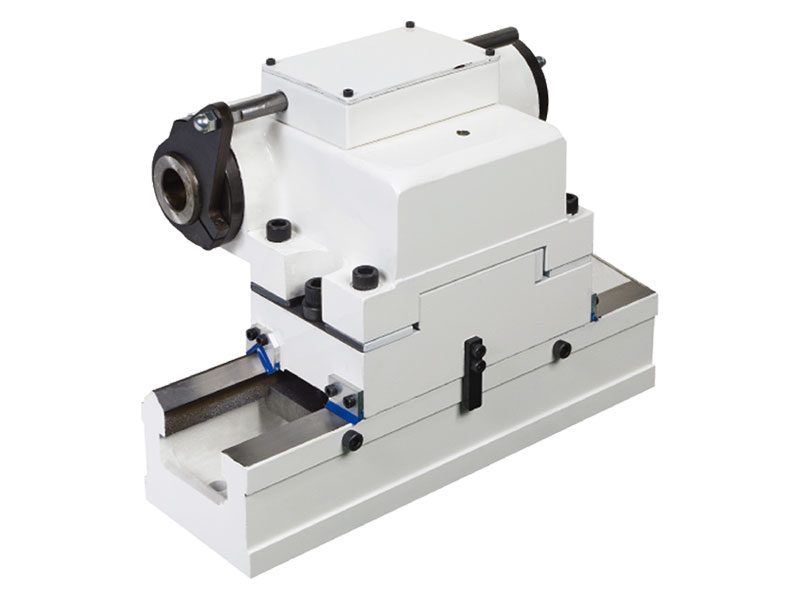

    Tailstock Tailstock stroke mm
    Tailstock sleeve stroke mm
    Tailstock sleeve taper
    Feeding Rapid feeding speed m/min
    Motor Spindle motor KW
    Feed motor KW
    Servo turret motor KW
    Machine size (Length x Width x Height)*2 cm
    Net weight kgs
    Pallet size (Length x Width) cm
    JG-100 JG-150
    Box way
    30° Slant
    0i-TF ß6 0i-TF ß8
    6 8
    R25 x P10
    22
    90
    380
    200
    175 150
    42 52
    230
    200
    A2-5
    56 61
    6,000 4,000
    8
    20
    20
    63
    0.1
    0.3
    0.4
    0.5
    175
    95
    MT#4
    X:20, Z:20
    5.5/7.5 7.5/11
    X:1.2, Z:1.2
    0.75
    175 x 172 x 166
    2,400
    230*190
    <>
    ※Specification is subject to change without prior notice.
    1※Thickness of jaw, tool and retract room have been reserved.
    2※Chip conveyor is included.
  • Standard Accessories
    1. U sleeve ø12,16,20 per size 1 pc
    2. ID sleeve ø6,8,10,12,20 per size 1 pc
    3. OD tool holder 2 sets
    4. ID tool holder 4 sets
    5. U-drill tool holder 2 sets
    6. MT#2, 3 sleeve per size 1 pc
    7. Work light
    8. Full enclosure
    9. Heat exchanger
    10. Auto lubricator
    11. Hydraulic chuck (1 set hard jaw, 3 sets soft jaw)
    12. Manual tailstock
    13. Back type chip conveyor (with tank)
    14. Tool box with tool kits
    Optional Accessories
    1. Auto door
    2. Auto bar feeder
    3. Air-conditioner
    4. Tool probe
    5. Oil-water separator
    6. Oil skimmer
