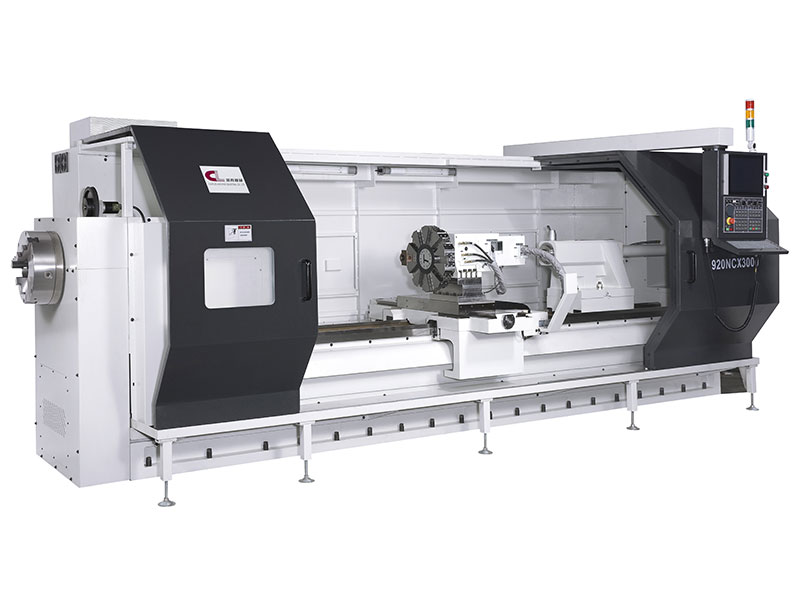

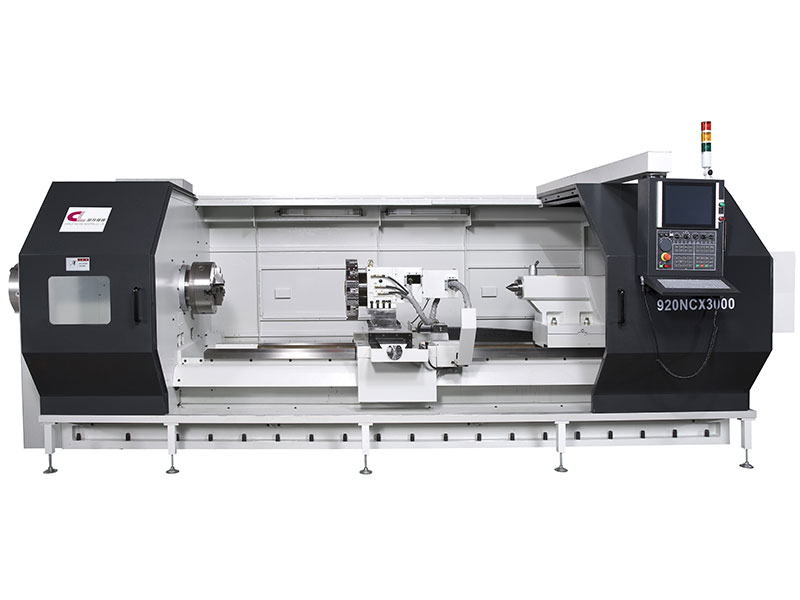

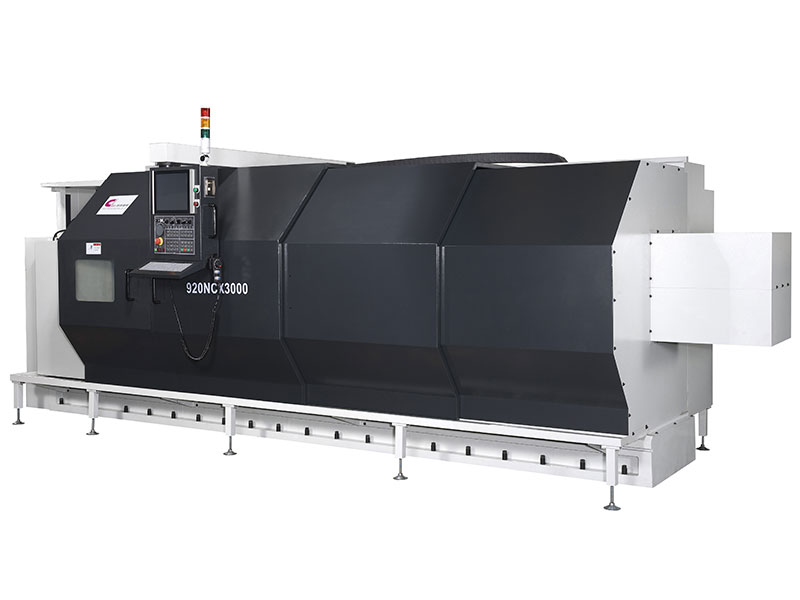

CH-920NC

home > products > PC Base > CH-920NC

SPECIFICATIONS		Unit
Lathe	Type
	Body type
	Controller
	Swing over bed	mm
	Swing over cross slide	mm
	Distance between centers	mm
Moving Travel	Bar diameter	mm
	X-Axis travel	mm
	Tailstock travel	mm
	Tail sleeve travel	mm
Spindle	Spindle bore	mm
	Spindle nose
	Spindle taper
	Max.Spindle speed	RPM
Turret	Type
Turret	Tool size	mm
Tailstock	Tail sleeve diameter	mm
Tailstock	Tail sleeve taper
Motor	Spindle motor	HP
	Feed motor	KW
	Cutting oil motor	KW
	Hydraulic motor* OP	KW
	Servo turret motor* OP	KW
Oil tank capacity	Lubricating oil	L
	Cutting oil	L
	Hydraulic oil* OP	L
Power	Electric power	KVA

920NC
Box way
Platform
Mitsubishi, Fanuc or others
920
560
1,000 / 1,500 / 2,000 / 3,000 / 4,000 Or customized longer
140	215
260
250
300
152	230
A2-11	A2-15
161 x 1:20
500
Electric square tool post
32 x 32
125
MT#6
25
X:1.8, Z:3.0
0.25
1.5
0.75
0.04~0.601.8
40
40
15

※Specification is subject to change without prior notice.

STANDARD ACCESSORIES
1. Controller
2. Electric square tool post
3. Steady rest
4. Work Light
5. Tool pocket
6. 2-axis Ball screw
7. Tool post
8. Tool box with tool kits
9. Pad
10. Tail sleeve
11. 2 sets OD/ID/U-drill tool holder
12. ID sleeve
13. U sleeve
OPTIONAL ACCESSORIES
1. 3/4-jaw chuck
2. 3-jaw hydraulic chuck with plate, cylinder and unit
3. Servo turret 8T with servo tailstock
4. Chip conveyor with tank
5. High pressure coolant pump
